Update: Risers

Last time I mentioned that my setup for imaging integrated flux nebulae won't allow a rotation range quite up to the 180 degree minimum I'll need. I mentioned a riser would probably be needed.

What should show up on Amazon Vine for review the next day but this:

Car seat risers.

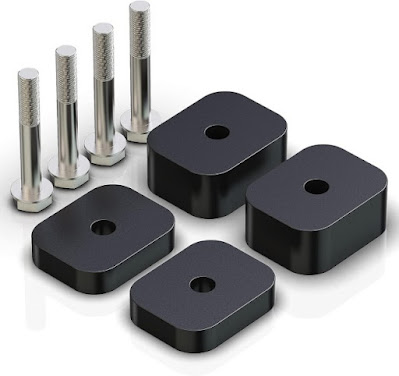

Yes, they're car seat risers for when you're not tall enough to drive your vehicle. This set comes with two 1" and two 1/2" spacers, nicely drilled through. The bolts are provided to fit the car model of your choice and are entirely too large for my purpose, so they go in the odd bolts jar.

One problem with these is that the edges of the spacers are too far from the hole and extend into the movement of the camera, keeping it blocked. When I realized this I thought all was lost because these felt as if they were made of metal and probably difficult to work with.

They're not!

What exactly they're made of is a mystery. An ordinary hacksaw cuts them with relative ease producing a sort of black, plasticky "sawdust," so I assume they might be made from some sort of composite material. In fact, it looks as if these might be created with a 3D printer.

Whatever their composition, two minutes of hacksawing shortened one of the ends. With a quick trip to Home Depot for a M6 1x40mm bolt it was ready. It turns out the 1" spacer is sufficient, providing over 180 degrees of rotation.

Camera on riser. It may look a little precarious but it's solid with very little flexure

It's ready for the next step: assessing image quality. Will there be nasty internal reflections? Given that this is a new lens/sensor pairing will it produce a flat field at infinite focus? Will the lens to sensor separation need adjustment? Questions questions questions!

Spring is in the air -- today's high was at least 52F.  A week ago it barely managed to make it up to -2! I know, it's not April yet. Even worse, it's still February, the month that never ends!

Cabin Fever Dreams About Imaging IFN

Yes, it's mid February, the 2025 Nebraska Star Party mailing has arrived, and cabin fever is raging as temperatures are forecast to hit -18 F. Obviously that makes it a good time to play indoors with the imaging setup and ponder about the integrated flux nebula imaging I talked about last time.

The Setup

Here's a picture of the tentative setup that doesn't use guiding:

Non-guiding setup

There's not much to it: camera, electronic filter wheel, lens, and "Frankenhub" for USB 3, power, and Dew control. This will be my "Version 1" to try at first. If it doesn't deliver adequate star shapes, I'll move on to Version 2 that includes guiding:

Same as in image above, but with guider swapped in for the hub

The hub will be a part of this, too. I'll attach it somehow to the underside of the dovetail or the G-11 saddle. This photo shows my old Orion StarShoot guider mainly because it can run off the ASI 2600's USB 2 port.

Note that in both setups the filter wheel limits camera rotation to a range of about 150 degrees, meaning there's a small (8%) chance I won't be able to get the exact composition I want. A suitable riser would fix this, so I may have to do some shopping.

I'm still eying that Rokinon 135 f/2 lens with a hefty measure of lust. Basic frugality stops me, and the truth is that I really am curious about how well the old Tamron lens performs for this task. The Tamron was about $90 in 1980; in 2025 dollars that's $342, close to the Rokinon's price before the tariff wars started up. While I've been writing this the price of the Rokinon has jumped from $368 to $409, an increase of 11%.

PEC Training

This was a nice idea but after reading about what PEC is most useful for I doubt I'll bother with it. The focal length here simply isn't long enough for PEC to matter in any significant way. If tracking is fine unguided without training PEC, fine. If tracking isn't adequate I'll just use the setup that allows guiding. Many if not most commenters suggest that at short focal lengths guiding alleviates the need for PEC.

Guiding (if used)

The consensus seems to be that if one is using PHD2 and ASCOM guiding as I am (instead of ST-4) one should do PHD2 calibration by aiming the scope near the intersection of the celestial equator and the meridian. This is basically a do-once thing, only needing to be redone if you make a change in guider's orientation relative to the mount, such as rotating it around its optical axis. Once calibrated you can slew "anywhere" and it will guide properly.  I'm not entirely sure if it's possible to have guiding when aimed at a pole, or even at a declination like that of Polaris (3/4 of a degree from the pole). I'll find out if I decide to use autoguiding.

Dithering

Regardless of whether or not guiding is used, I'll want to dither. Even though it chews up some time I think it helps. If I'm guiding I'll try to use PHD2 dithering; if that works, fine. If not I'll dither with NINA.

Acquisition

I would normally be tempted to use long exposures times for such a low surface brightness object like IFN. The problem is that long exposures tend to saturate stars; as a result, they lose their color. I want to keep that color as a contrast to the pale IFN.

That means I'll need to use relatively short exposures of two minutes or less. Look at this image built from 90 s light frames to see what I think are ideal star colors. Yes, they're muted compared to what you see in a lot of images but I think they're more "natural" looking. (Never get me started on the rampant oversaturation of color in modern images!)

Test images will reveal the optimal exposure length.

I'm going to shoot total exposure in the L:R:G:B ratio of 3:1:1:1. Maybe even 6:1:1:1. There's nothing magic about this, I just like to lean on luminance. That image I linked to was 1:1:1:1. Nice color, but not a lot of detail. More luminance might have helped.

For convenience I'll probably shoot only luminance the first clear night under dark sky. That simplifies taking flats, focusing, and gives me some freedom about where I shoot the complementary color frames. Ideally those could get taken the second night under dark sky, but two consecutive clear nights in April in Minnesota? Ha ha.

If I only get one luminance night I can process that and see how well the IFN shows up in it. That will give me a sense of how much more is needed.

Any binning that gets done will be in post-calibration processing.

Composition

Using the celestial pole as frame center won't work well with NGC 188, which I want to include in the image. I'll ask NINA to put Polaris at frame center with NGC 188 in one corner.

It should look sort of like this:

Planned IFN FOV (red box)

Combining Sessions

Given the hours of total exposure I'll want, this will certainly require multiple sessions scattered across several nights. This means I'll need to have NINA slew, center, and rotate consistently. Can NINA and my G-11 do this for a target so close to the pole? I'll have to find out.

Processing

Every new image brings new things to learn in processing. My Veil Nebula mosaic project taught me not only about mosaics, but also more about color calibration and background flattening. It also led me to acquire new tools like NoiseXTerminator, StarXTerminator, StarNet2, and the script StarReduction.  I expect this project will be no different!

The Weather

Camping may be deferred until May's new moon. Around the time of the April new moon the average daily low temperature is around 34 F. Great for keeping the camera cooled, but a little too chilly for this camper (I use a tent). Things improve in May, when the average lows are in the upper 40s. Still quite brisk, but much more bearable. I'll probably use April as my prep month, taking advantage of friend's warm house, and make camping reservations for May.

So that's my (over)thinking at this point. Before heading out to the state park I'll need to do a few things:

• See if NINA can slew/center/rotate for the intended composition
• Shoot some test exposures to assess unguided tracking, and switch to the guided version of the hardware if it can't. These exposures can also be used to judge exposure time, and if the lens suffers from distracting internal reflections
• Collect maybe a dozen or so frames of each color channel making use of NINA dithering and verify that star color is adequate
• It might be useful to verify that my stop-down ring is actually giving me f/4. This can be done indoors at any time using my flat panel

Aside from that last item all I can do for now is play with the hardware and wait patiently for warmer weather. Spring can't come soon enough!

Happy 2025! It's That Time Again: Imaging Plans for the New Year

It's usually folly to plan a summer of imaging. Sure, clouds and smoke could spoil things, but why not give it a  try? 2025 might just turn out to be an exceptional year! State Park camping and two star parties! Let's go!

APRIL/MAY

The first new moon of the 2025 camping season is on April 27th, a week after Easter. So any time within a few days of that should be dark enough for deep imaging. Likewise the dark moon in May, which may be better (i.e., warmer) for camping.

The late spring sky doesn't offer much to image at the focal length of my FSQ-106 (530 mm), aside from groups of galaxies and a few clusters. There is one wide-field subject that has always intrigued me: integrated flux nebulae, or IFN. Here's a nice summary of what IFN is and is not, and where to find it.

Probably the best known and most frequently imaged IFN is in the direction of M81 and M82. Instead of that I'll go for the IFN near Polaris.

Imaging near the north celestial pole has some interesting aspects. Because the apparent movement of stars there is so slow it's common for people to suggest not using autoguiding when imaging at relatively short focal lengths. To do without guiding you need a near-perfect polar alignment; a well-trained periodic error correction is very helpful, too. PoleMaster provides alignment that's close to perfect, so that's covered. But I do need to train PEC and that will be one of the first things I do this spring.

Associated with guiding is dithering, which I like to do. Is it possible to dither and not guide? Yes, with NINA's built-in dithering. I'll have to learn how to use this, and hope it works well. If it doesn't I'll probably just not dither.

I've never targeted anything so close to a celestial pole; A little testing suggests that my G-11 is fine with having NINA slew from counterweight-down it to the pole. What I'm not entirely comfortable with is NINA trying to center it there; will it get lost making excursions back and forth across the meridian? Is Polaris far enough from the pole to make centering a nonissue?

Regardless of where the target is there's always the question of what imaging gear to use. The key characteristics of IFN are that it's very low surface brightness and extensive in size. That sounds like a job for short focal length and fast focal ratio, right? Here are my best options for the optics:

• Takahashi FSQ-106 (FL 530 mm, f/5);  Pinpoint stars, but smallish field and rather slow
• Takahashi FSQ-106 + focal reducer, (FL 387 mm, f/3.65); Pinpoint stars, very fast, but smallish field
• Tamron lens, (FL 135 mm, f/4.0); Fits NGC 188 in field, overmounted (not a bad thing), very fast, no autofocusing

Here are two trial images made using the Tamron. An H alpha image of the Lambda Orionis Ring from 2015 and an LRGB image of the Sadr area from 2016. Both used an ST-8300 mono camera, and I can't say my processing was particularly good (I was still using ImagesPlus). How well it works with my ASI 2600 camera is unknown right now. Will it need spacers? Will there be tilt problems? Will it show internal reflections when put on a relatively bright star like Polaris? I won't know until the weather warms up and I can shoot some frames.

If the 135 doesn't work out I might go with the FSQ + focal reducer. Its ability to support autofocusing is some compensation for its small FOV. Maintaining the FSQ's focus will be important for dealing with the long all-night sessions (6+ hours in April, about 4.5 hours in May). With a small lens like a 135, it's easy to minimize thermal FL change and prevent dew formation (as suggested by KathyAstro) by wrapping a long dew prevention strap around it.

Finally, there's the issue of exposure time. I'll probably use my standard 120 s @ gain 100 for luminance and try to collect as many frames as possible. If tracking is an issue, I can drop it to 60 s, but if stars stay nice and round, I might increase this up to as long as 300 s. Shorter exposures will be fine for the color channels; in fact, those might only be 60 s  @ gain 0 to keep stars from saturating. Some experimentation is needed!

JUNE/JULY

The Nebraska Star Party typically occurs close to the end of July, a bit too late in the year for imaging my desired target of the Antares/Rho Ophiuchi region. In June the situation is much better, and a good time for imaging it comes after the third quarter moon of June 18. The Antares and Rho Ophiuchi nebulae should look fine together at 135 mm.

July is wide open for imaging much of the Milky Way, including the M8/M20 tandem. This pair will fit nicely into a single frame using the FSQ-106 with its focal reducer. Also available is M16, which nicely fits the FSQ native field.

LATE AUGUST

It's Northern Nights Star Fest time, and I'll continue collecting frames for the Soap Bubble. Recall that the Bubble had just started to show up with about six hours of frames collected in 2024. Continuing on this target in 2025 should put me over 12 hours of total exposure. Barring losing time to more Aurorae. 😁

SEPTEMBER/OCTOBER

The Iowa Star Party (2025 date TBD) will be a good time to gather more frames for either the IFN, the Soap Bubble, or some other target that suggests itself. Another possible target is IC 348.

---------------------------

Obligatory Power & Battery Update

As an Amazon Vine reviewer,  I have been able to get the components needed to replace my old 100 W solar panel and charge controller with a smaller, much lighter 50 W unit. Thank you, Vine!

Today wasn't ideal (high haze and tree branches) but it managed to supply 35 W. The charge controller seemed to work fine, and in an hour it boosted a 10 Ah LiFePo4 battery at rest voltage 12.96 V to 13.26 V. The meter suggested 20 Wh had been added to the half-charged battery. That's compatible with the rest voltages.

The real test will be when the sky is fully clear and the panel gets hot in the sunlight. I'll take it camping and see what it can do.
